Products Description

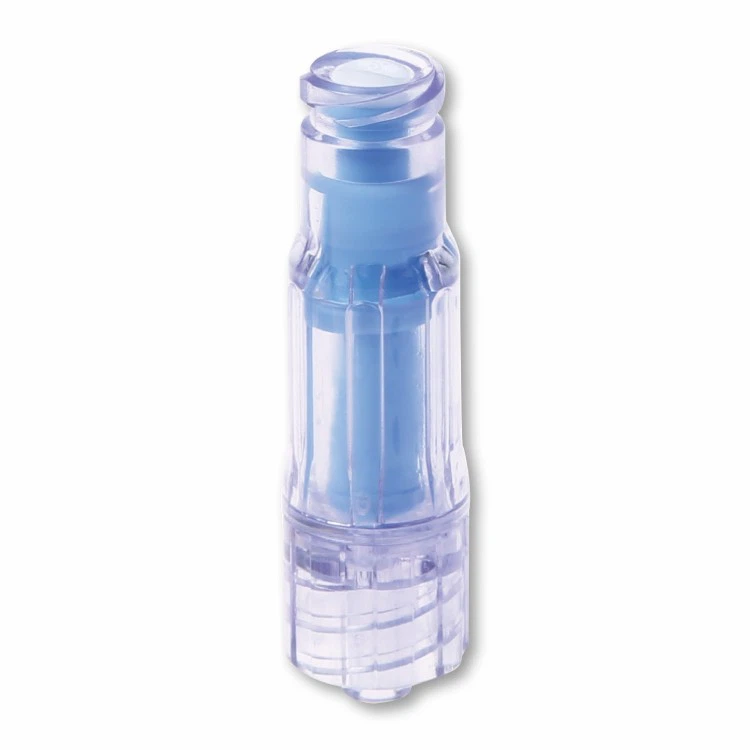

Needle-free connectors are needle-free connection devices for intravenous infusion systems. They enable safe drug delivery through a sealed Luer interface, reducing needlestick injuries and blood backflow contamination, and are suitable for various infusion and injection scenarios.
Products advantages
Needle-free, closed-loop connection: The needle-free mechanical valve structure replaces needle operation, reducing occupational exposure.
Ultra-low pre-fill volume and return flow: Pre-fill volume 0.10 ml, return flow 0.007 ml, effectively reducing the risk of residual blood and backflow.
High flow rate design: Gravity flow rate up to 240 ml/min, straight-through internal channel reduces flow resistance, ensuring stable and smooth infusion.
High back pressure tolerance: Withstands back pressure of 200 kPa, high-strength PC shell and stable valve core structure ensure no leakage under high pressure injection.
Long service life: Supports 200 activations, continuous use for 7 days.
Medical-grade safety materials: Medical-grade polycarbonate (PC), DEHP-free and latex-free.
Standard Luer lock interface: The interface conforms to ISO 80369, compatible with mainstream infusion and injection systems.
why choose us
Quality System: Compliant with ISO 13485 Medical Device Quality Management System
Compliance Certification: Complete MDR certificates
Production Environment: Cleanroom production
Sterilization Method: Ethylene oxide (EO) sterilization and packaging
Traceability: Full batch traceability
Document Support: COA, performance test reports, and compliance documents are available.
Product Types:
|
Product Name |
Description |
Ref No. |
|
Negative Needle Free Connector |
Male-Female ends |
NFC01 |
|
Male-Female ends, lipid-resistant |
NFC01A |
|
|
Female -Tube, for 2.3mm OD tubing |
NFC02 |
|
|
Female -Tube, for 2.3mm OD tubing, lipid-resistant |
NFC02A |
|
|
Female -Tube, for 4.0mm OD tubing |
NFC05 |
|
|
Femal -Tube, for 4.0mm OD tubing, lipid-resistant |
NFC05A |
|
|
Tube -Tube, Y site, for 4.0mm OD tubing |
NFC06 |
|
|
Tube -Tube, Y site, for 4.0mm OD tubing, lipid-resistant |
NFC06A |
|
|
One Way Flow Needle Free Connector |
One way flow, Male-female ends |
NFC21 |
|
One way flow, Female -Tube, for 2.3mm OD tubing |
NFC22 |
|
|
Positive Needle Free Connector |
Female-tube ends, for 2.3mm OD tubing |
NFC08B |
|
Male-female ends |
NFC08C |
